Customized Request Electrical Discharge Wire Cut Machine Tool for Cutting

Name: Customized Request Electrical Discharge Wire Cut Machine Tool for Cutting
Brand: TOSUN
Price: 1 USD

Quality Customized Request Electrical Discharge Wire Cut Machine Tool for Cutting for sale

Certification : ISO 9001

Place of Origin : China

Brand Name : TOSUN

MOQ : 1 unit

Price : Negotiable

Packaging Details : Wooden Case

Delivery Time : Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Supply Ability : 1000PCS/Year

Model NO. : A320

Numerical Control : CNC/MNC

Processing Precision : 0.01~0.02(mm)

Performance Classification : Economical CNC Machine Tools

Condition : New

Transport Package : Wooden Case

Specification : 1750× 1300× 2050

Trademark : TOSUN

Origin : Suzhou

HS Code : 8456301090

After-sales Service : Yes

Warranty : 1 Year

Application : Metal

Process Usage : Metal-Cutting CNC Machine Tools

Movement Method : Linear Control

Control Method : Open-Loop Control

Customization : Available | Customized Request

Contact Now

Servo Motor CNC Electroerosive Wire Cut Machine (Advanced) A320C is our state-of-the-art wire cutting machine. With its exceptional cutting accuracy and consistency, this machine is perfect for precision work piece processing and precision die processing.

At Jilin Songjiang Tech-trade Co., Ltd., we take pride in delivering top-notch equipment that meets the highest standards. Our CNC EDM Electroerosive Machine A320C is no exception. With its advanced features and cutting-edge technology, it's a game-changer in the industry.

Equipment Specification

No.	Description	Unit	Specification
1	Model		A320
2	Worktable Size (L×W)	mm	550×700
3	Worktable Travel (X×Y)	mm	320×400
4	Max. Workpiece Height	mm	250
5	Max. Workpiece Weight	kg	350
6	Machine Dimensions (L×W×H)	mm	1750×1250×2050
7	Machine Weight	kg	1600

Electrical Parameters

No.	Description	Unit	Specification
1	Max. Cutting Speed	mm²/min	200
2	Wire Electrode Diameter	mm	Φ0.10~Φ0.25
3	Machining Precision (Cutting the octagon in 10mm)	mm	≤0.010
4	Taper/Workpiece Height		*3°/100mm
5	Power Consumption	kw	3kw
6	Surface roughness	μm	Single cut Ra<2.0, **Multiple cut Ra<0.8
7	High pressure water tank		Multi-stage filter system
8	Wire guided spinneret		Ruby spinneret
9	Control method of wire spool, cooling system		Controlled by the program and the NC panel
10	Repeating position precision of X, Y-axis	μm	±1
11	Guide rail type		Line guide rail
12	Speed regulation of transport wire tube		Converter
13	Number of control axes		5
14	Power Supply		AC380V, 50Hz

Customized Request Electrical Discharge Wire Cut Machine Tool for Cutting

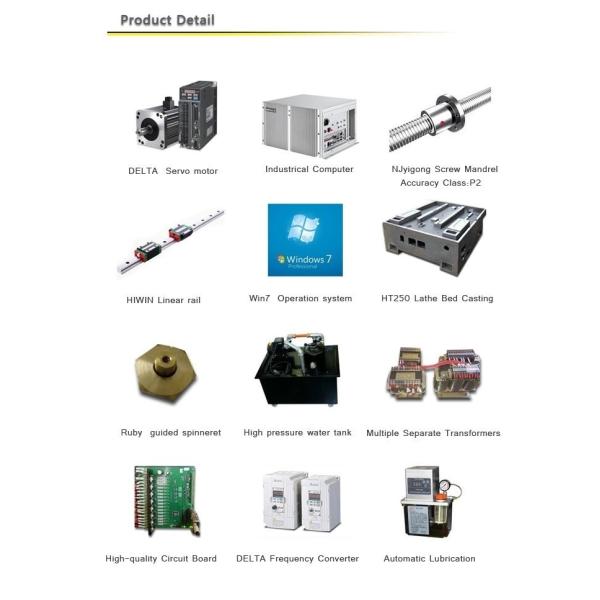

Customized Request Electrical Discharge Wire Cut Machine Tool for Cutting Images
